PAROLIN INVADER KZ 2023

PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
PAROLIN INVADER KZ 2023
Цвет
Производитель
PAROLIN
501 900 руб.
шт

Chassis are made of seamless special CrMo steel tubes of diameters 30 mm and 32 mm (1.26 in). High-precision tube cutting and welding are performed using laser technology machines, while tube bending is processed through high-tech CNC machines.

>Components are obtained from a selection of best aluminium and magnesium solid pieces and then anodized, the first being done with high-tech fully automatized machines and held to tight tolerances. All these operations are performed within Parolin Racing Kart’s facilities.

Wheelbase ranges from 1045 to 1050 mm. Stub axles are cut from a single steel piece. Ackerman geometry, camber and caster are easily adjustable thanks to the innovative Eurostar eccentric system. Pedals are made of aluminium and present an ultra-low friction attachment system that provides enhanced sensibility.

Brakes are hydraulic self-adjusting CIK FIA homologated AP RACE 06, in front and rear. Rear brake rotor is 180 x 18 mm or 194 x 18 mm in diameter, front brake rotors are 150 x 13 mm or 151,5 x 10 mm in diameter, all made of Cast Iron and ventilated. Brakes, as all components, are produced within our facilities. It presents front and rear removable stabilizer bars.

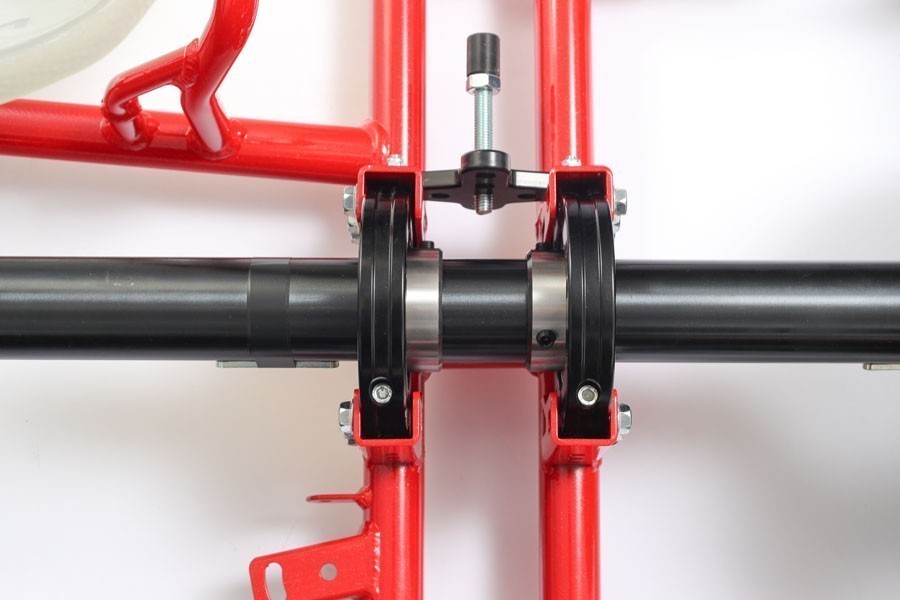

Rear axle is supported by three bearings with special cassettes and is 50 mm in diameter. Optional 40 mm is available. The new aerodynamic streamlined bodyworks Eurostar Dynamica are among the lightest available in the market. Wheels are 210/130, made of magnesium, anodized, heat treated and present a triple bead retention system. Chassis are powder coated in Parolin red color and CIK FIA homologated.

Invader Motorsport Version

Ø Tubes and material 32 x 2 - 25 cr-mo4
Wheel base 1050 mm
Rear width 636 mm
Front width 720 mm
Length 1530 mm
Tank capacity 9 lit
Brake system Hydraulic self adjusting
Brake position standard
Rear brake disk ventilated 194x18 mm
Axle 50x2x1040 hollow
Steering wheel 330 motorsport
Bodyworks Eurostar Agile / Wings
Alloy Wheels 130-210 - 130-180 mm
Homologation

017-CH-99

The innovative Easy Caster is a distinctive trait of the Invader model, offering the possibility of making rapid and independent changes both to the caster and to the camber. The adjustable steering column support is another standard feature of all Parolin chassis and it ensures a fast adjustment of the Ackermann angle. Aiming at fine-tuning the front geometry in any circuit and with any driving style, this system provides a broad range of opportunities to modify the front-end setup.

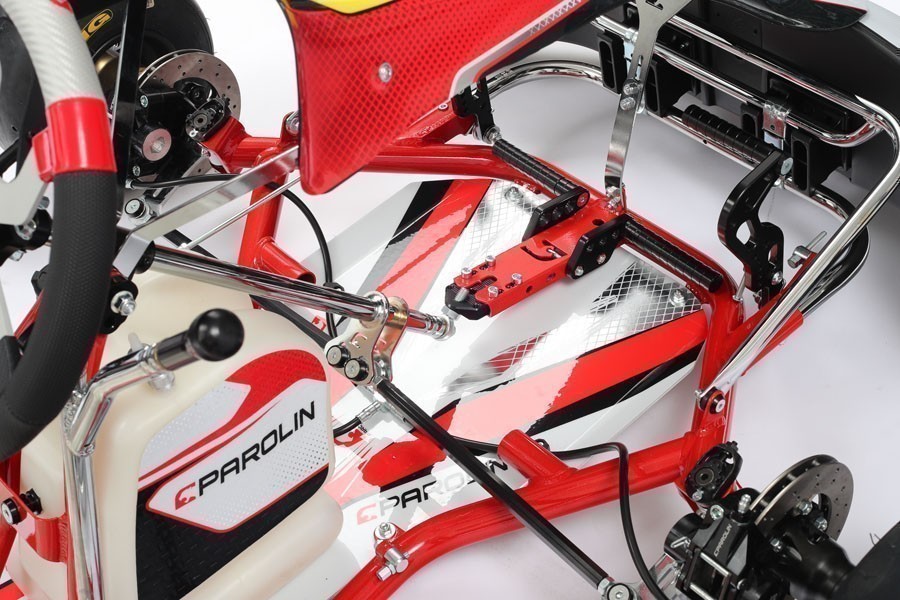

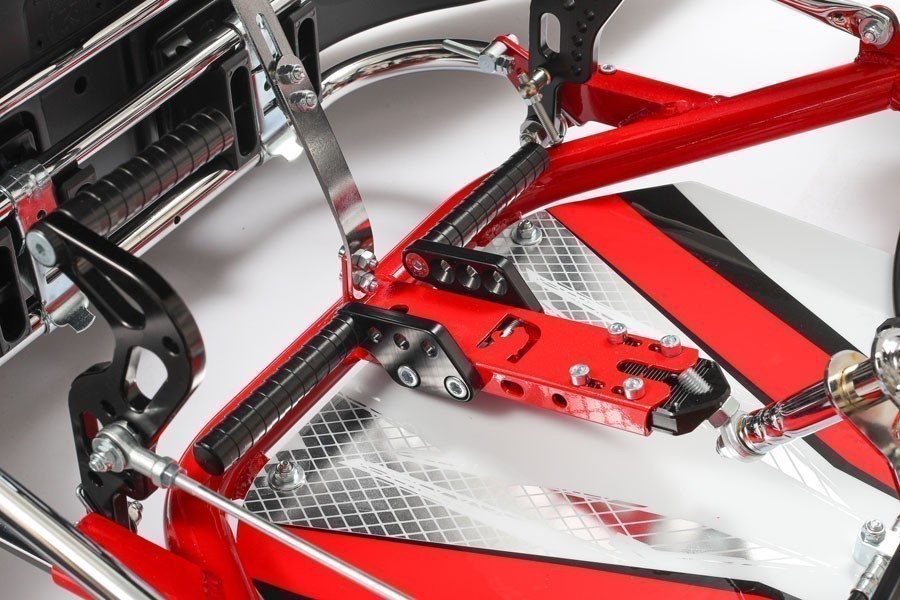

The black anodised aluminium pedals add to the exceptional adaptability of the Invader model, suiting drivers of all heights and offering customisable pedal sensitivity. The footrest is made of black anodised aluminium too and is also knurled to provide greater grip. Moreover, it can be adjusted in four different positions, while an additional pedal board is available for the shortest drivers.


BRAKING SYSTEM

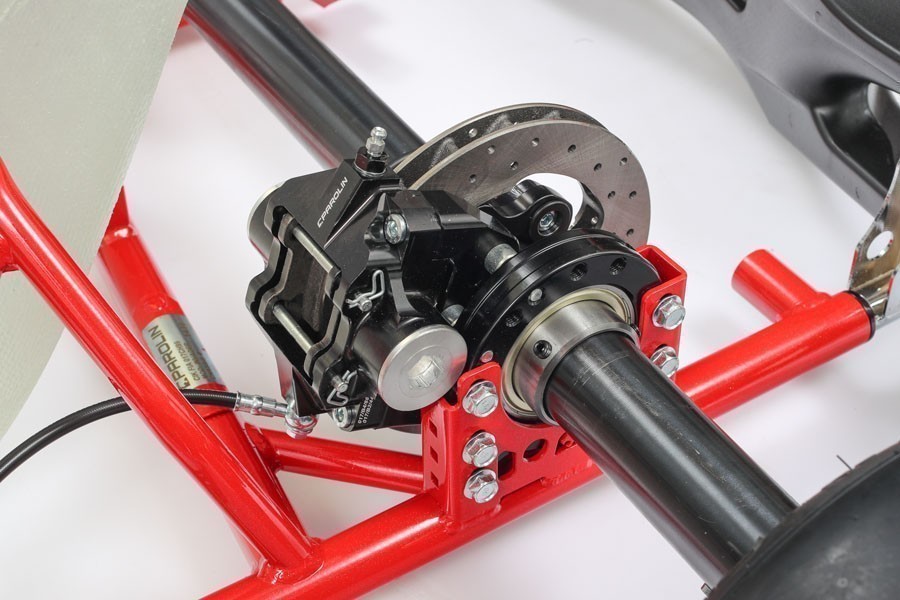

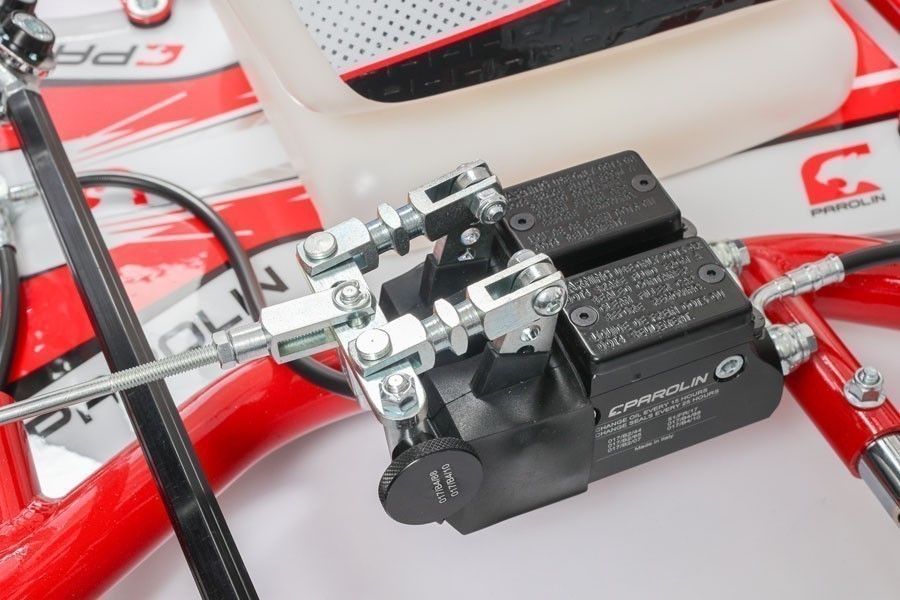

The front and rear calipers are characterised by the same design and geometry, but the rear one is larger and equipped with two pistons that have a 32 mm diameter, while the front ones feature pistons that have a 27 mm diameter. Nevertheless, all the pistons have magnetic holding on the brake pads. Furthermore, the radial attachment guarantees greater system solidity and torsional stiffness, which translate into better braking sensitivity. The floating, self-ventilated and perforated cast iron brake discs are supported by the aluminium brake master cylinders, which are machined from a solid piece. One of their benefits consists in a 22 mm internal piston: a lever is fastened to the rod that is connected to the brake and offers four anchoring positions, thus providing drivers with a wider range of options in order to satisfy their preferences with regard to braking modulation. Lastly, the brake distributor is characterised by a shaped knob that is designed for jerky rotation, which facilitates drivers in any adjustment and prevents the distributor from rotating accidentally.



BODYWORK

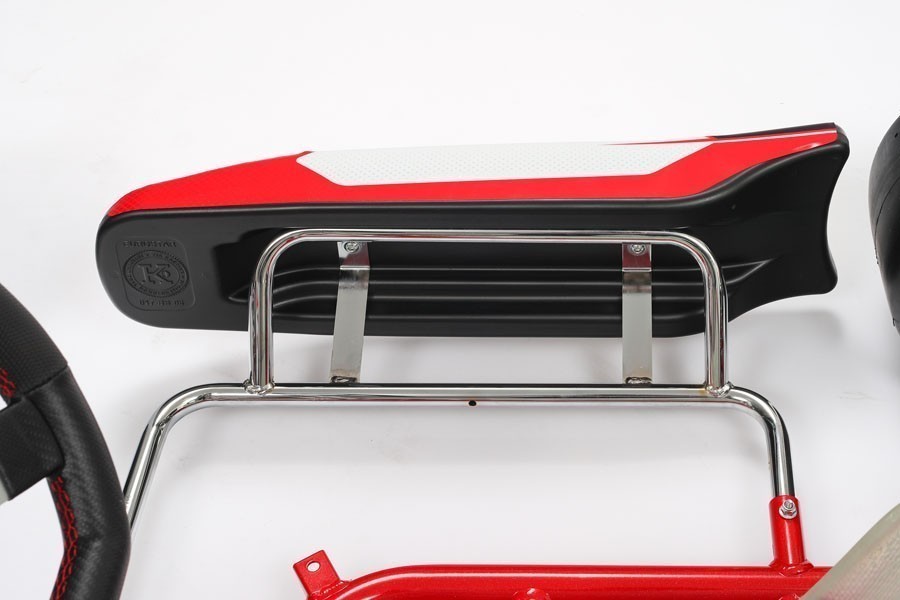

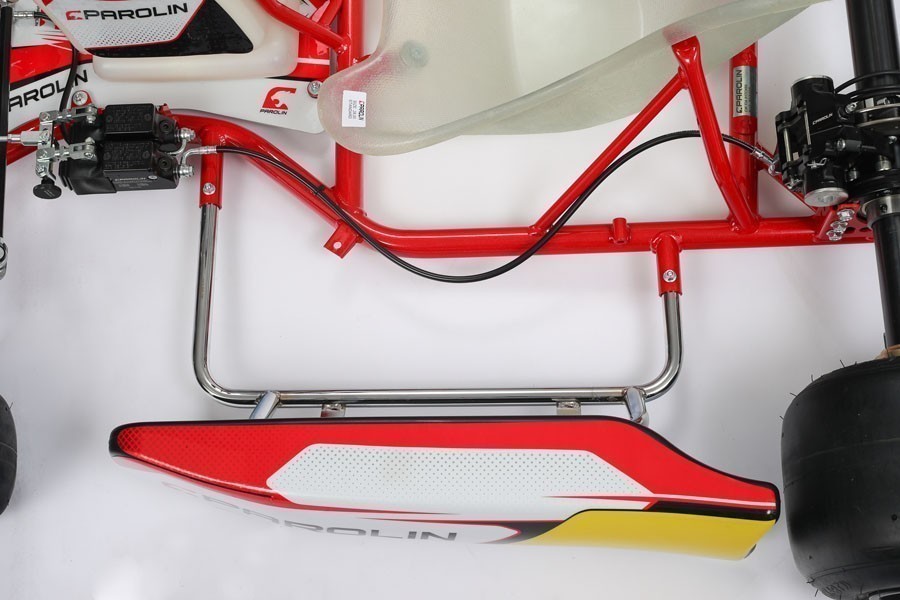

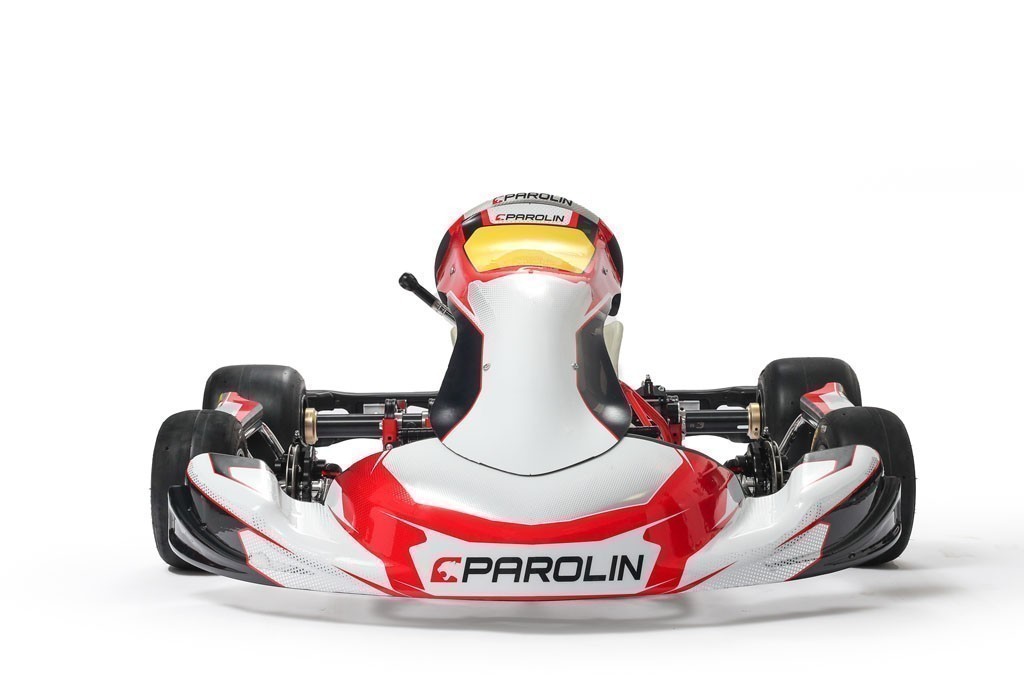

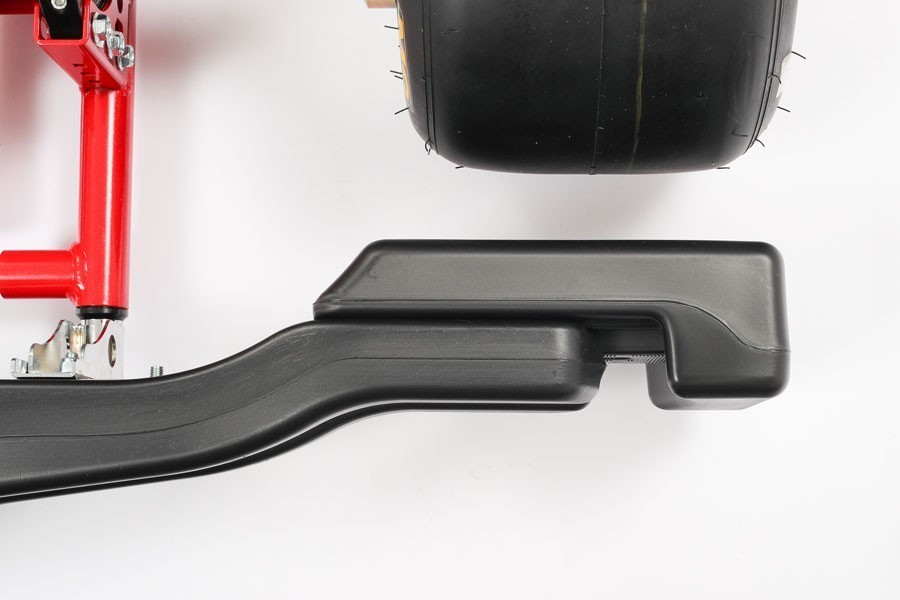

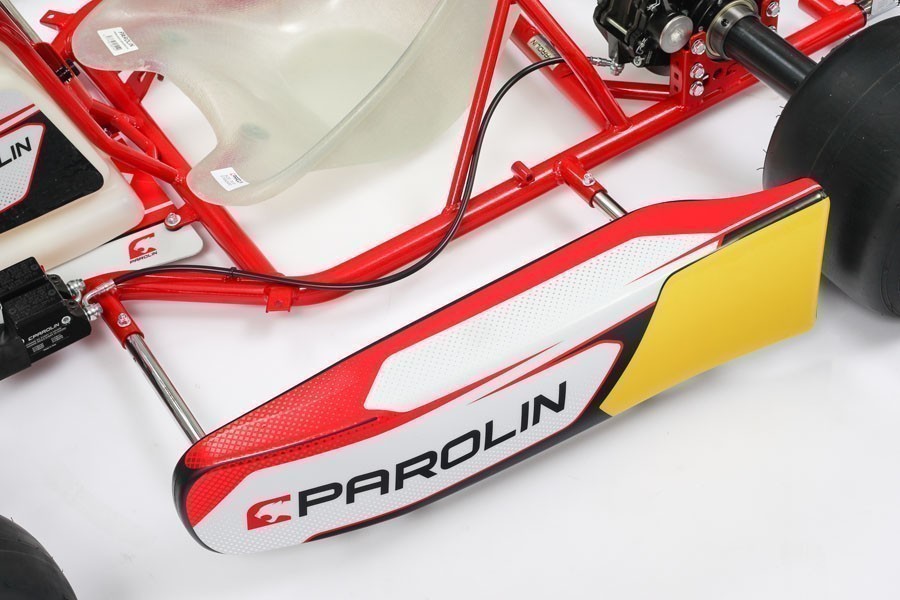

Parolin Racing Kart has also focused on the aerodynamic qualities of the Invader model, being aware of their value. With the goal of boosting aerodynamic efficiency, the Italian company developed the Dynamica fairings thanks to meticulous aerodynamic studies and wind tunnel testing. The new bodywork’s purpose is to optimise the air flows directed towards the engine and the radiator, while reducing turbulence.


OTHER COMPONENTS



Finally, the Parolin Invader’s steering wheel features padding on the sides in order to improve grip and ease driving.
