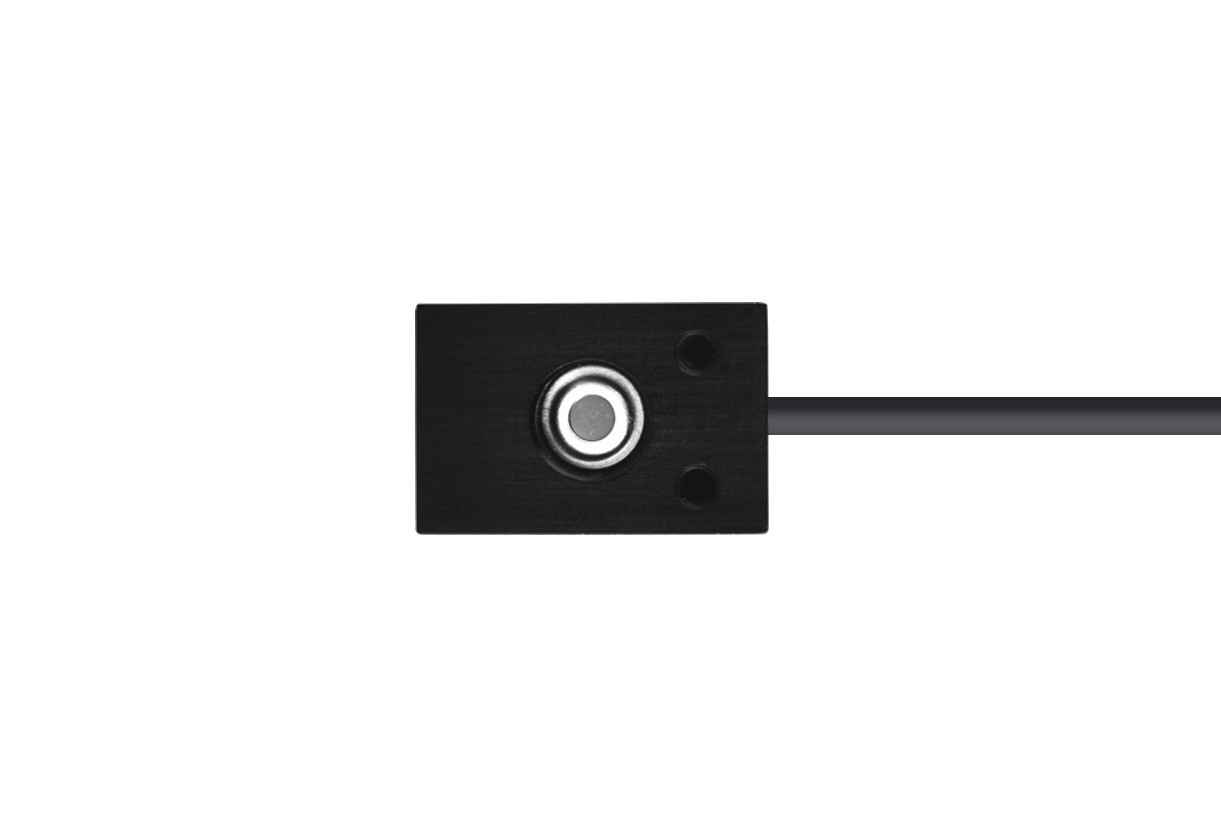

Датчик температуры шин AIM 1шт

Датчик температуры шин AIM 1шт
Цвет
Производитель
AIM
13 335 руб.
шт

Aim Tyre Temperature Sensors Complete Kit

Aim Tyre Temperature kit sensors have been specifically designed to measure the surface temperature of tires, providing important info for chassis tuning, tire exploitation, and driver behaviour.  The sensors, with a 35° Field of View, measure temperatures between -20 and 120°C and provide a 0-5V output signal.

The four sensors come in a kit including an Infrared Temperature Controller device, which is necessary for connection to MyChron5, which will display and store all sampled data for post analysis.
Below is a Race Studio Analysis screenshot showing the temperature changes of all tires in each point of the track.

Temperature sensors have been specifically designed to measure the surface temperature of tires, providing important info for chassis tuning, tire exploitation, and driver behaviour. The sensors, with a 35° Field of View, measure temperatures between -20 and 120°C and provide a 0-5V output signal. The four sensors come in a kit including an Infrared Temperature Controller device, which is necessary for connection to MyChron5, which will display and store all sampled data for post analysis. Here below a Race Studio Analysis screenshot showing the temperature changes of all tires in each point of the track.

User guide

Technical Specifications

Connection:  Connection to MyChron5 via IR Temperature Controller
Output signal: 0-5V
Field of View: 35°
Temperature range: -20°/120°C
IR temperature controller dimensions: 127.6 x 32 x 39 mm
Sensor dimensions: 26.6 x 17.2 mm
Sensor cable length: 250 mm
IR temperature controller cable length: 400 mm

Connection to MyChron5 via IR Temperature Controller

Артикул
X05TTS01B0
Производитель
AIM

Наличие

Новинка
